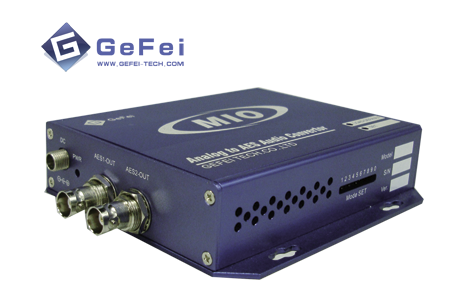

MIO-AD-AUD is a small Analog to AES audio converter. The MIO-AD-AUD Converts analog audio to AES digital audio. It realizes conversion from four channel balanced analog audio to two group digital audio with 24 bit processing capability.


　

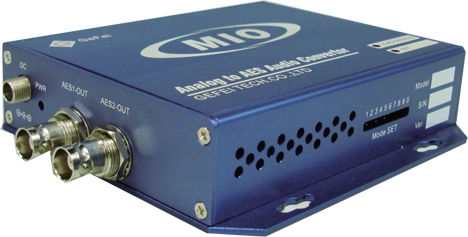

analog audio to AES converter

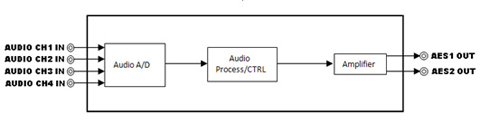

Block Diagram

　

analog audio to AES converter block diagram

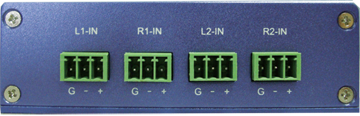

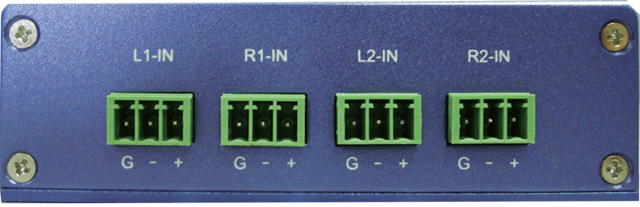

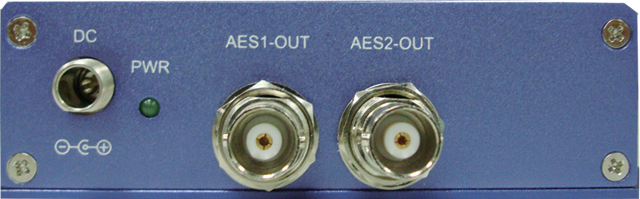

MIO AD-AUD Interface



Key Features

  • Convert four channels balanced analog audio to two groups AES digital audio
  • Broadcast quality with 24 bit processing and 48KHz audio sampling
  • Indicate lights tell the states of source signal and power immediately
Download Specification

Specification

Analog audio Input:
4 x 3 pin phoenix, 600 Ω  (balanced)
Frequency response: <±0.25dB(20Hz~20kHz)
Max level: +24dBu


Digital audio Output:
2 x BNC, 110Ω

Status Indication:
Input/power states (Indicate by shining or extinguishing of the red and green LED)
Dimension: 123x92x29mm
Power:      DC 12V/1.5A
