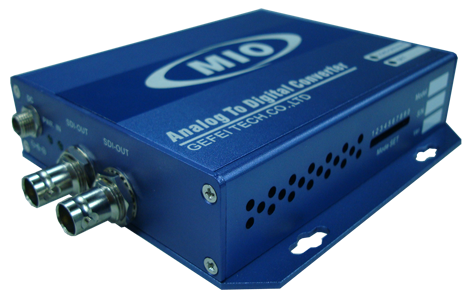

MIO DEC-AUD is a small Analog video ato SDI video converter. The MIO DEC-AUD converts one channel optional CVBS/YUV/YC analog video to two identitcal channels of SDI video. SDI format of 525i60 and 625i50 are supported.

analog video to SDI converter

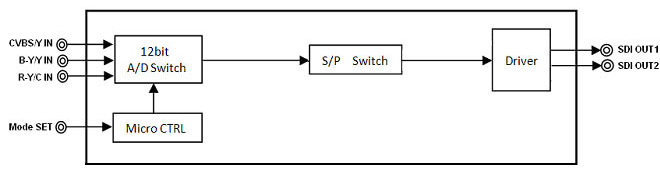

Block Diagram

analog video to SDI video converter block diagram

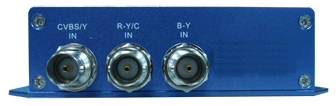

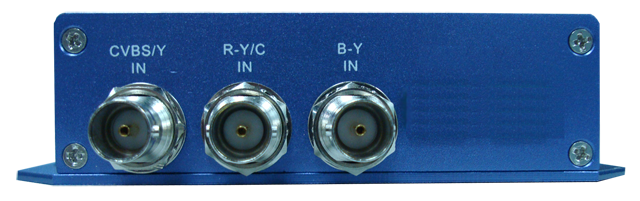

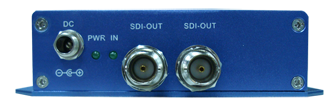

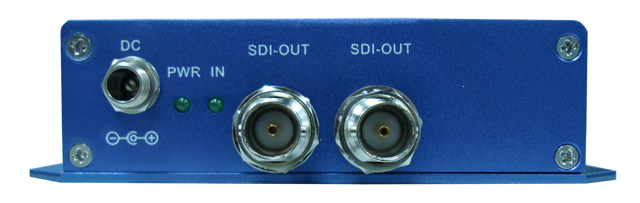

MIO DEC Interface


Key Features

  • Convert optional CVBS/YUV/YC analog video to SDI
  • Support NTSC/PAL video format
  • Support 625i50 and 525i60 SDI video format
Download Specification

Specification

Analog Video Input:
 3 x BNC, 75Ω, CVBS/YC/YUV optional

Digital Video Output:
2 x BNC, 75Ω, SDI
Format: SMPTE 259M-C; 270Mb/s
Amplitude: 800mV±5%
Jitter: <0.2UI

Status Indication: Power status (Indicate by shining or extinguishing of the red and green LED)
Dimension: 124.5 x116.5 x30mm
Power: 12VDC 1.5A
