MIO Demux_SDI is a small embedded SDI SDI to video and dual channel stereo audio de-embedder. The MIO Demux_SDI  de-embeds two channels  analog audio from an embedded SDI signal. The MIO Demux_SDI  outputs two identical channels of SDI video and two channels of analog audio.

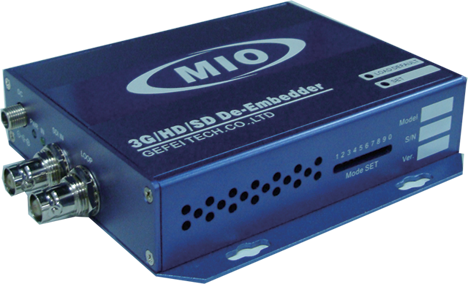

embedded SDI to analog audio & video converter

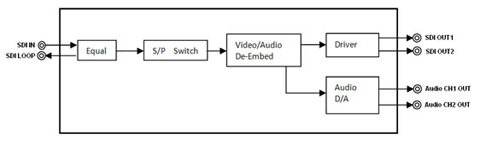

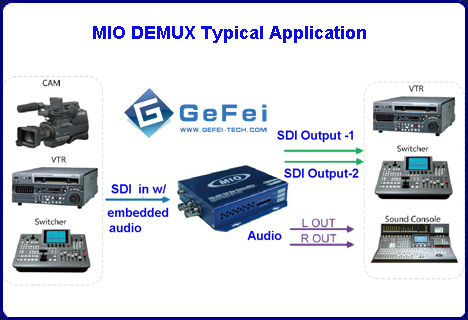

Block Diagram

embedded SDI to analog video & audio converter block diagram

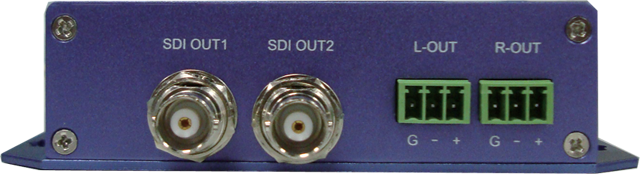

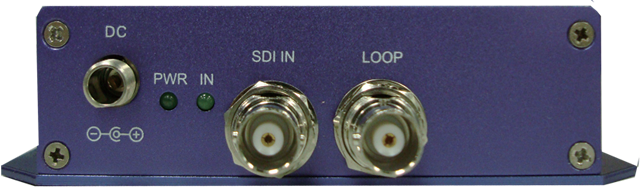

MIO DEMUX_SDI Interface


Key Features

  • Converts one embedded SDI SDI to video with two channel analog audio
  • Support 525i60 and 625i50
  • Broadcast quality with 20 bit processing
  • Indicate lights tell the states of source signal and power immediately
Download Specification

Specification

Digital Video Input:
1 x BNC,  75Ω, SDI
Format: SMPTE 259M-C; 270Mb/s
Digital Video Output:
2 x BNC, 75Ω, SDI
1 x BNC, 75Ω, SDI (Loopthrough)
Jitter：    <0.2UI
Amplitude: 800mV±5%
Analog Audio Output:
2 x 3pin Phoenix, 600Ω (balanced)
Max level:  24dBu

Status Indication:
Input/Power states (Indicate by shining or extinguishing of the red and green LED)
Dimension: 123 x 92 x 29mm Power: 11-13VDC 1.5A
