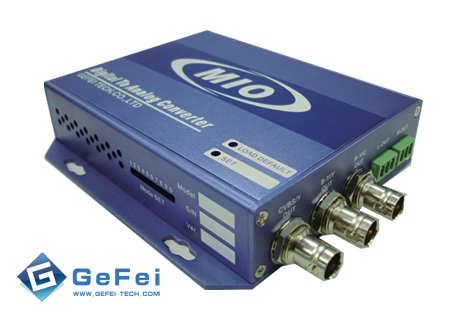

MIO ENC-AUD is a small SDI video to analog video and auduio converter. The MIO ENC-AUD  converts embedded SDI viodeo to analog video and two channels stereo analog audio. The converted analog video can be CVBS/YUV/YC optionally, NTSC/PAL are supported.

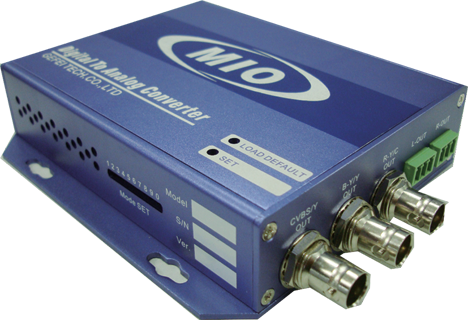

embedded SDI to analog audio & video converter

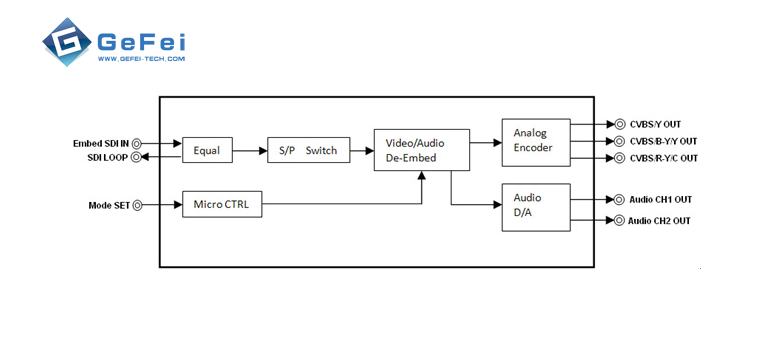

Block Diagram

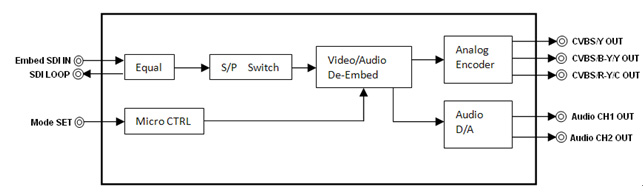

embedded SDI to analog video & audio converter block diagram

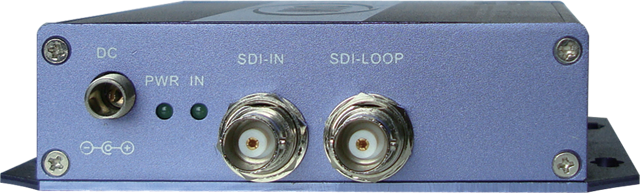

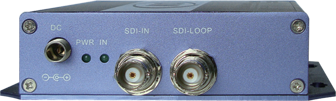

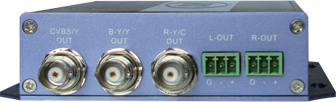

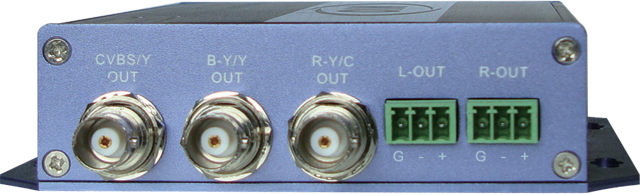

MIO ENC_AUD Interface


Key Features

  • Convert SDI to analog video with two channel analog audio, CVBS/YUV/YC are optionally
  • Support NTSC/PAL format
  • Audio with 10 bit processing
  • Indicate lights tell the states of source signal and power immediately
Download Specification

Specification

Digital Video Input：
1 x BNC, 75Ω, SDI
Format： SMPTE 259M-C；270Mb/s
Analog Video Output：
3x BNC, 75Ω, CVBS/YUV /YC optional
Analog Audio Output：
2x3pin phoenix, 600Ω (balanced)
Digital Video Output：
1 x BNC, 75Ω, SDI  Loopthrough
Status Indication：Input/Power states (Indicate by shining or extinguishing of the red and green LED)
Dimension:  124.5 x116.5 x30mm
Power:     12VDC 1.5A
