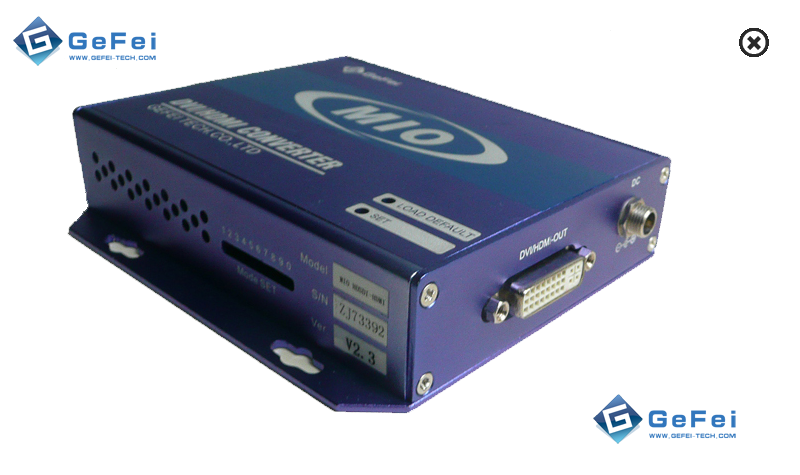

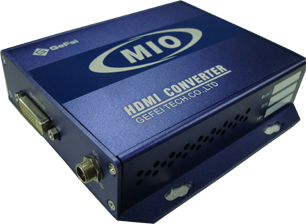

The MIO-HDSDI-HDMI is a miniature high quality HDSDI to HDMI video converter. The MIO-HDSDI-HDMI converts 3G-SDI, dual or single link HD-SDI, or SD-SDI to the HDMI signal. It is widely used for the LCD or the PDP display. It supports an HD-SDI with embedded audio and the max resolution is up to 1080p. A MIO-HDSDI-HDMI is a cost-effective device for high definition broadcasting video/audio monitoring or display systems.

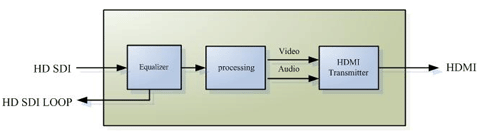

HD SDI to HDMI video converter block diagram

Block Diagram

HD SDI to HDMI video converter block diagram

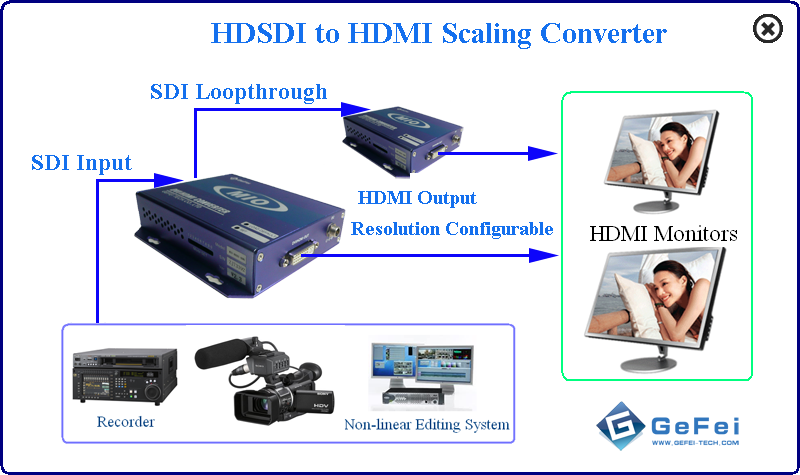

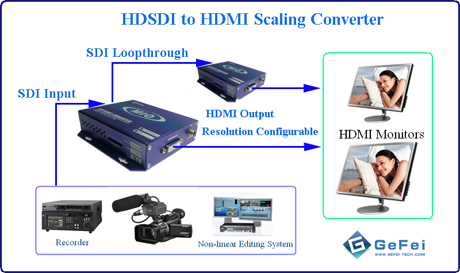

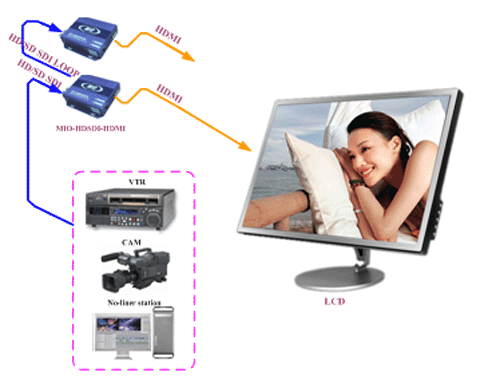

Application

HD SDI to HDMI video converter application


Key Features

  • Pixel to pixel convert to keep original image quality
  • 16 channels embedded audio processing
  • HDMI V1.3 compatible
Download Specification

Specification

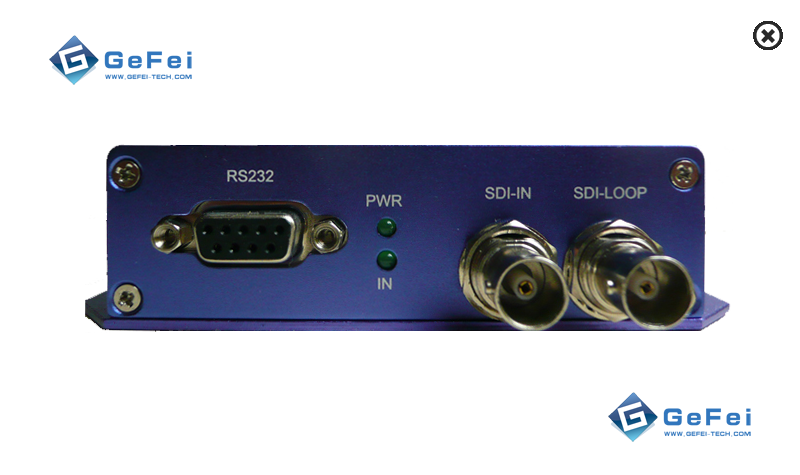

Video Input:
1 x BNC 75Ω, HD/SD-SDI
Standard:
SMPTE-259M-C; 270Mbps
SMPTE-292M; 1.485Gps
SMPTE 424M; 2.97Gbit/s
Video Format:
SD: 525i60, 625i50,
HD: 720p50/59.94/60　
      1080i 50/59.94/60
      1080p23.98/50/59.94/60

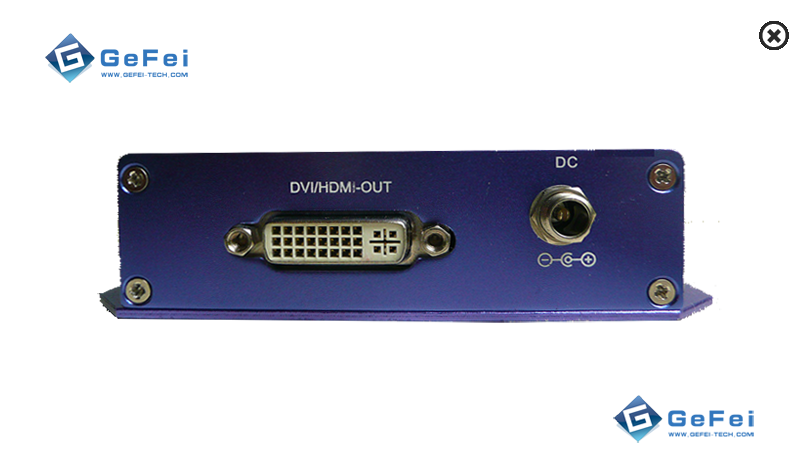

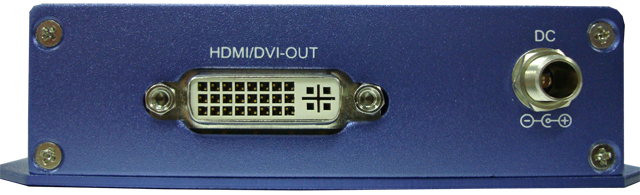

Video Output:
1 x DVI，Female
Standard: HDMI V1.3
1 x BNC, 75Ω, HD/SD-SDI, Loopthrough
Output Video Resolution:　
   800x600x75p     1024x768x60p
   1280x772x60p     1280x768x50p　
   1366x768x60p     1920x1080p50　
   1920x1080p60　

Size:
4.8' x 3.9' x 1.1' (120x98x27mm) 　

Power: +12V    1.8 A　
