MIO VSD_HD 1x4 HD/SD-SDI Video Distribution Amplifier. The MIO VSD_HD is a high performance distribution amplifier for SDI (SMPTE 259M and SMPTE 344M) and HD-SDI (SMPTE 292M & SMPTE 424M) signals. It takes one input, provides reclocking and equalization and distributes the signal to four identical outputs. Resolution - 8 & 10-bit (automatic). Reclocking & Equalization - Automatic. Data Rates - 143, 177, 270, 360, 540, 1483.5, 1485, 2970Mbps. Compact Size - Part of the MIO  family of compact, high quality and cost effective solutions.

　

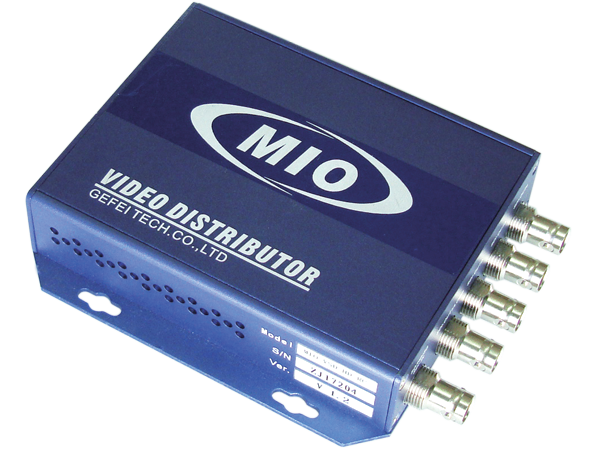

1 to 4 HD SDI video distribution amplifier with reclock

　

Block Diagram

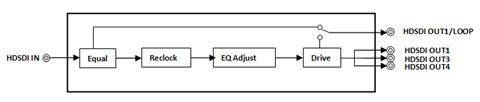

1x4 HD/SD SDI distributor block diagram

　

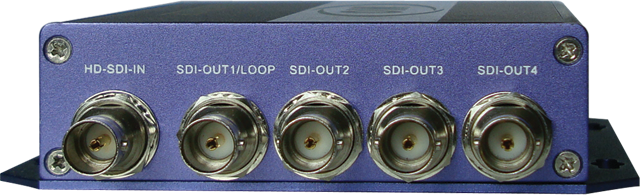

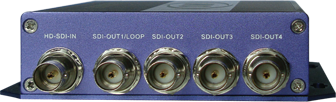

MIO VSD Interface



Key Features

  • Support 3G HD/SD-SDI
  • Support embedded audio, and amplify with 20 bit processing
  • Indicate lights tell the states of source signal and power immediately
Download Specification

Specification

Digital Video Input：
 1 x BNC, 75Ω, HD/SD SDI
Standard:  SIMPTE 259M-C; SMPTE 292M; SMPTE 424M
 Format: 625i50, 576i60, 720P,1080i,1080P
Max cable length: >200m
Digital Video Output：
 Output interface:
4 x BNC, 75Ω, HD/SD SDI
Amplitude: 800mV±10%
Jitter:            <0.2UI(100KHz)

Status Indication： Input/power states (Indicate by shining or extinguishing of the red and green LED)
Dimension: 123x92x29mm
Power:      DC 12V/1.5A
