The MIO VSD_RC is a multi-format, 1x4 reclocking SDI Distribution Amplifier. The MIO VSD_RC can be used as a low cost SDI DA or repeater. The SDI input is re-clocked and equalized to 300 meters of cable. In addition, the multi-standard feature allows the MIO VSD_RC to automatically adapt to 143, 177 or 270Mb SDI inputs. Features Compact 1x4 Re-Clocking SDI Distribution Amplifier Low Cost Automatic Multi-Standard Useful as a Repeater.

　

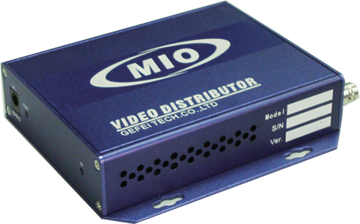

1 to 4 SDI video distribution amplifier

　

Block Diagram

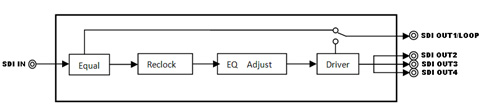

1x4 SDI distributor block diagram

　

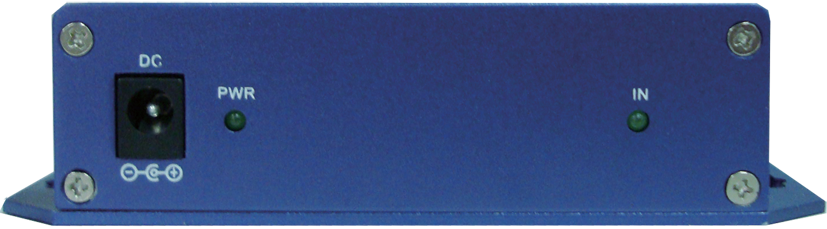

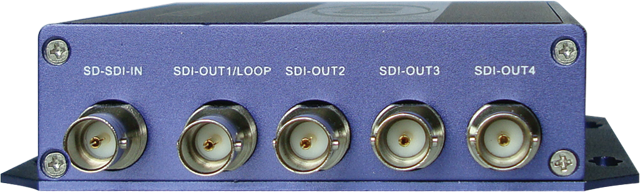

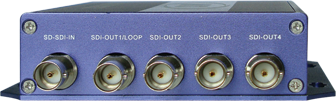

MIO VSD Interface



Key Features

  • Support 525i60, 625i50 and ASI
  • Support embedded audio, and amplify with 20 bit processing
  • Indicate lights tell the states of source signal and power immediately
Download Specification

Specification

Digital Video Input：
1 x BNC, 75Ω, SDI
Signal:    SIMPTE 259M-C Format: 625i50, 576i60,  ASI
Max cable length: >240m
Digital Video Output：
Output interface:
4 x BNC, 75Ω, SDI
Amplitude:             800mV±10%
Jitter:                     <0.2UI(10Hz)

Status Indication：  Input/power states (Indicate by shining or extinguishing of the red and green LED)
Dimension: 123x92x29mm
Power:      DC 12V/1.5A
