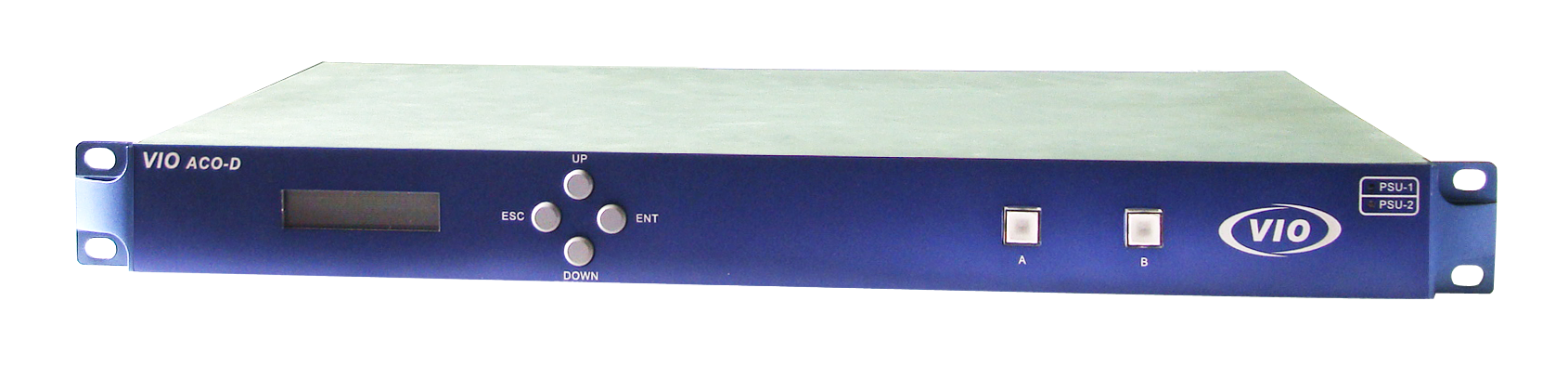

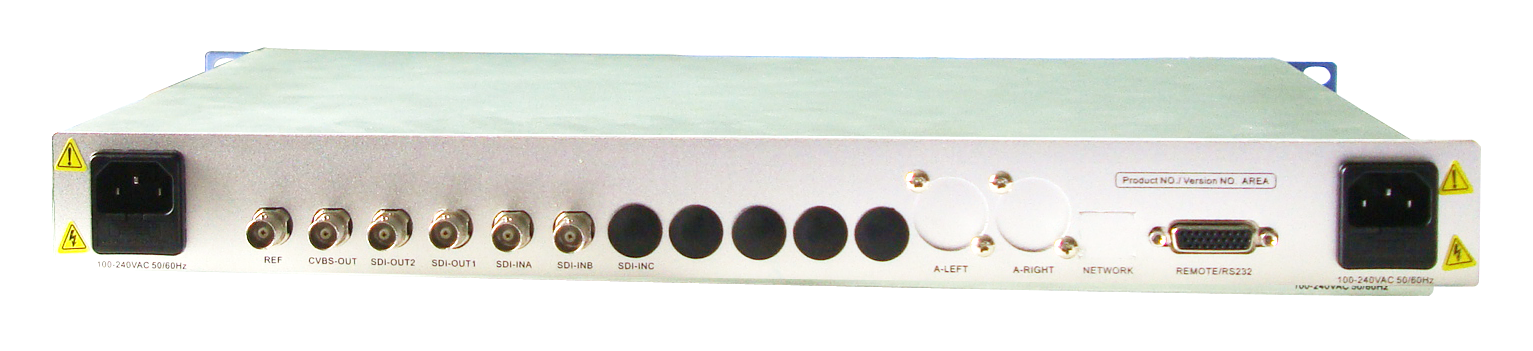

VIO ACO_SD is a HD/SD-SDI video 2 to 1 automatic change over switch. The VIO ACO_SD automatically switches the embedded HD/SD-SDI signal from the primary signal to the backup signal when problems are detected in the primary signal. If a switching occurs. The VIO ACO_SD indicates the problem by trigger the alarm signal. The SNMP and RS-232 control protocol are built in the systen. All the configuration and operation can be done in many ways, which are MCU on front panel, browser, SNMP and RS-232.

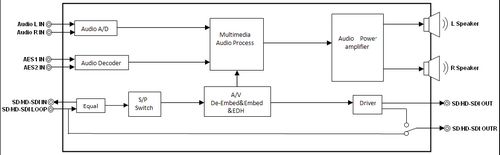

Block Diagram
Specification
| Reference Input: | Analog video output： |
| 1xBNC, 75Ω, CVBS, | 1 x BNC, 75Ω, CVBS |
| Signal style: analog composite | Signal level: 1Vpp |
| Random S/N: -79.5dB | |
| SDI Input/output: | Freq. response: -0.6dB to 5.8MHz |
| Input：2 x NBC, 75Ω, HD/SD-SDI
Output: 2 x BNC, 75Ω, HD/SD-SDI (one is bypass output) Signal: SMPTE 274M-270Mbps, SMPTE 292M-1.485Gb/s Format: 625i50, 576i60, 720P, 1080i,1080P Status director: PSU LED |
Differential Phase: 0.54 degree
Differential Gain: 0.14% MCU on front control panel: Output alarm configuration Sync alarm configuration power: Dual 110W, AC90-250V Dimension: 440×48×45mm Working Temperature: 0℃~35℃ |
