VIO KEYER_HD is a high definition downstream keyer to mix the serial component digital key and fill HD signals from
logo generators or/and character generator machines in HD living program. The VIO KEYER_HD incorporates the latest technology to provide
an advanced fully digital keyer. User can select 1-2 stand alone channels on the basis of his needs.
The VIO KEYER_HD provides SDI output for preview, two SDI program outputs which one is bypass output without power supply. The remote control panel
provides the customer a easy way to manually turn on or off the inset key. The VIO KEYER_HD is ideal for the "On-Air" environment.
The SNMP and RS-232 control protocol are built in the machine. All the configuration and operation can be done by
three ways, which are MCU on front panel, software on workstation and remote control panel.

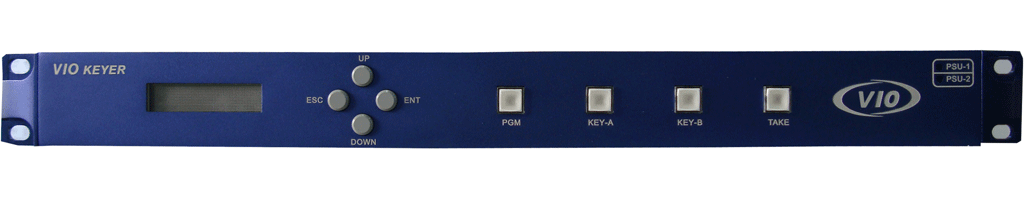

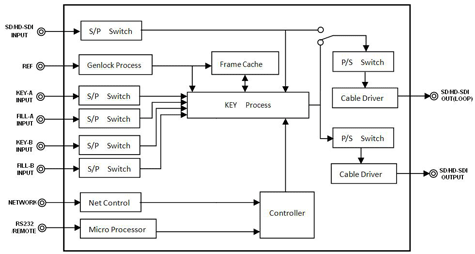

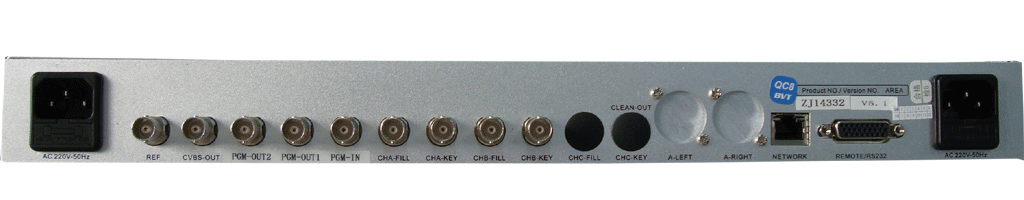

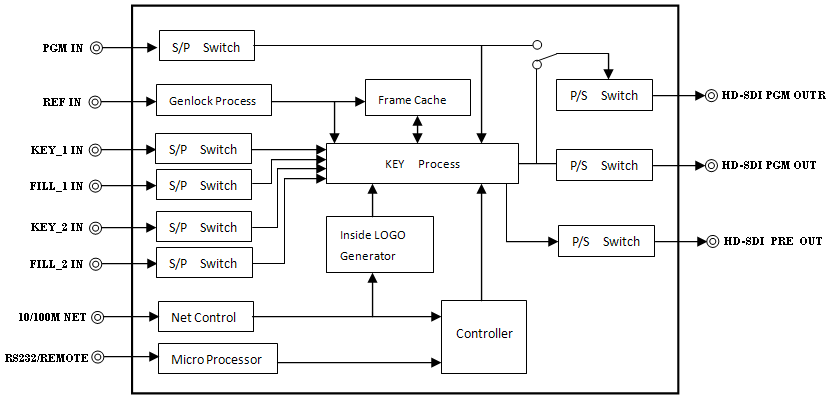

Block Diagram
Specification
| Reference Input: | Preview Output: |
| CVBS, 1xBNC 75Ω | 1xSDI, BNC 75Ω |
| SDI Key and Filling Interface: | Video Format: |
| Key input No.: 2xSDI，BNC
Filling input No.: 2xSDI, BNC PGM input number： 1xSDI, BNC PGM output number： 2xSDI, BNC |
SD: 576i50, 480i59.94
HD: 525i, 625i,720p 1080i 50/59.94/60 1080p23.98/25/29.97/30 |
| MCU on front control panel: | External Control: |
| Image control:
H Phase 0-2639 V Phase 0-1124 Key delay setting： -1~+63pixel Key setting： White /black key Step length adjustment： 1/5/10/50/100/200 Control Type: Auto/Manual |
1 x RJ45, 10M/100M Adaptive
Status Indicator:
Power: <36W, 110-250V ac Dimension: 440x483x45 mm |
