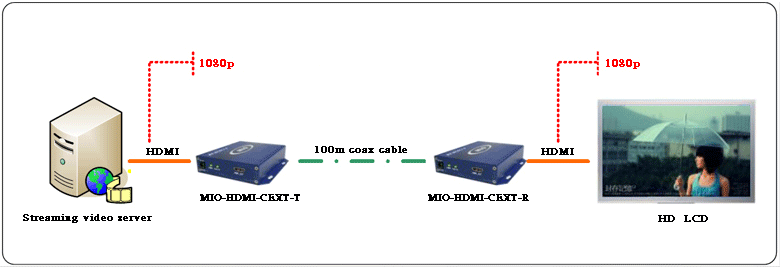

The MIO-HDMI-CEXT is a high quality miniature HDMI cable extender. The MIO-HDMI-CEXT transfers HDMI Video & Audio signals over a coaxial cable up to 100m. It's made up of a MIO-HDMI-CEXT-T transmitter and a MIO-HDMI-CEXT-R receiver. The MIO-HDMI-CEXT coax cable extender provides automatic input scan rate detection and supports a wide variety of input formats (576i, 625i, 720p, 1080i, and 1080p). The MIO HDMI-T is fully compatible with the latest HDMI v1.3 standards.
Specifications |
| HDMI Video Resolution: |
| 800x600x75p 1024x768x60p 1280x720x60p 1280x768x60p |
| 1366x768x60p 1920x1080x50p 1920x1080x60p |
| SDI Video format: |
| SD: 525i60, 626i50 |
| HD: 720P, 1080i, 1080P |
| MIO HDMI-CEXT-T: |

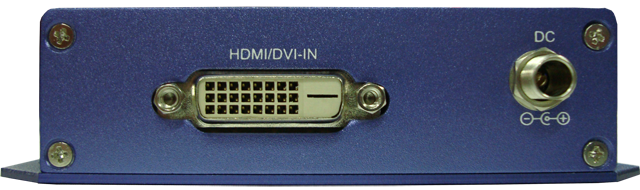

| IN: 1xDVI-I, Female; Protocol: HDMI V1.3 |

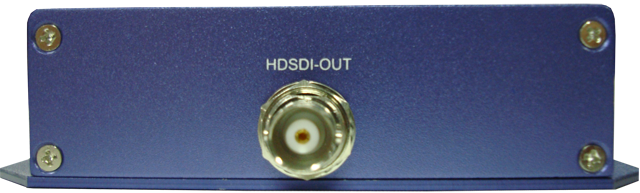

| OUT: 1 x BNC, 75Ω, HD/SD-SDI |
| MIO HDMI-CEXT-R: |

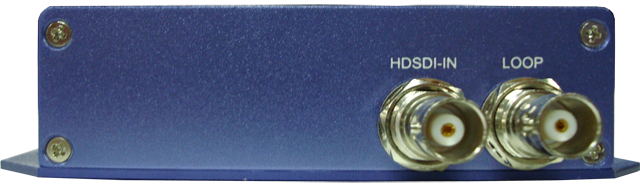

| IN: 1 x BNC, 75Ω, HD/SD-SDI |
| OUT: 1xDVI-I, Female; Protocol: HDMI V1.3 |
| Loop out: 1 x BNC, 75Ω, HD/SD-SDI |
| Size: 4.8" x 3.9" x 1.1" (120x98x27mm) |
| Power: +12V 1.8 A |
MIO-HDMI-CEXT
