The MIO VSD  is a multi-format, 1x4 SDI Distribution Amplifier. The MIO VSD can be used as a low cost SDI or ASI Ditribution Amplifier or repeater. The SDI input is equalized to 100 meters of cable. In addition, the multi-standard feature allows the MIO VSD to automatically adapt to 143, 177 or 270Mb SDI inputs. Features Compact 1x4 SDI Distribution Amplifier Low Cost Automatic Multi-Standard Useful as a Repeater

　

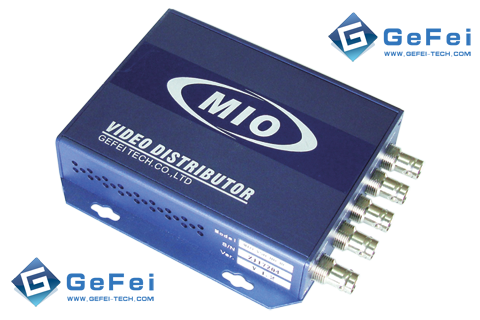

SDI signal conversion 1 to 4 digital video split SD-SDI video distributor HD5DA equivalent

　

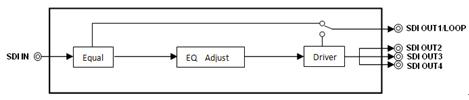

Block Diagram

1x4 SDI distributor block diagram

　

　
Related products and order information Online Stroe
MIO VSD - 1x4 SDI Video Distributor Buy it online
MIO VSD-HD - 1x4 3G/HD/SD SDI Distributor Buy it online
MIO ADA - 1x4 Analog Audio Distributor Buy it online
MIO VDA - 1x4 Analog Video Distributor Buy it online

Key Features

  • Support 525i60, 625i50
  • Support embedded audio, and amplify with 20 bit processing
  • Indicate lights tell the states of source signal and power immediately
Download Specification

Specification

Digital Video Input:
1 x BNC, 75Ω, SDI
Signal: SIMPTE 259M-C
Format: 625i50, 576i60, ASI
Max cable length: >100m

Digital Video Output:
4 x BNC, 75Ω, SDI
Amplitude: 800mV±10%
Jitter: <0.2UI(10Hz)

LED Status Indication:
Power & Input signal locking
Dimension: 124.5 x116.5 x30mm
Power: 12VDC 1.0A
Working Temp.: 5 °C - 25 °C
