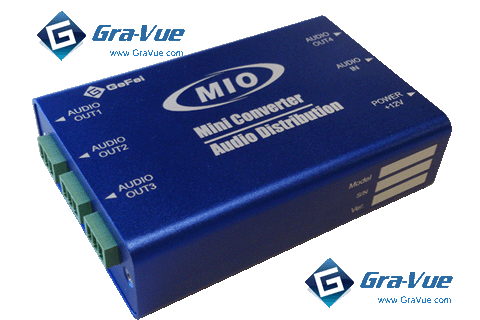

The MMIO ADA is a miniature high performance analog audio distribution amplifier for the broadcast and Pro A/V industry. Exceptional performance features include excellent response, noise and distortion specifications. MMIO ADA functions with 4 balanced outputs. Additionally, MIO ADA can be used to distribute LTC.

　

1 to 4 analog audio distributor 1 to 4 audio split analog audio DA 1x4 Analog Audio distribution amplifier power

　

　
Related products and order information Online Stroe
MMIO ADA - 1x4 Analog Audio Distributor Buy it online
MMIO VSD-HD - 1x4 3G/HD/SD-SDI Distributor Buy it online
MMIO VDA - 1x4 Analog Video Distributor Buy it online

Features

  • Support balanced analog audio
  • Adopt 3-pin pheonix connector

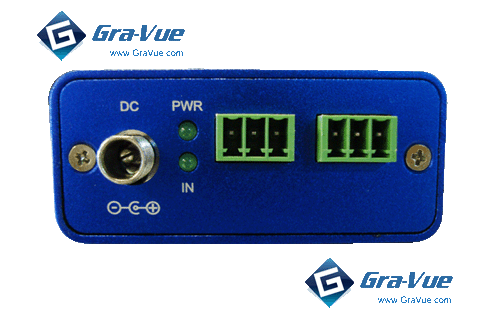

  • LEDs for power & signal presence indication
Download Specification

Specification

Analog Audio Input:
1 x 3pin phoenix, 600Ω,  (balanced)

Analog Audio Output:

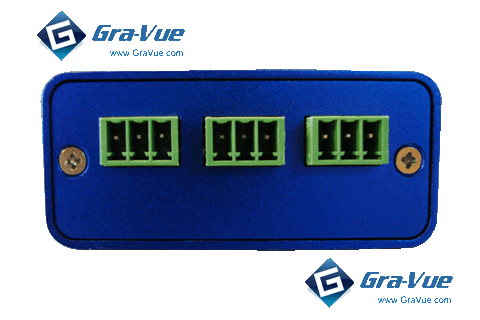

4 x 3pin phoenix, 600Ω, (balanced or unbalanced)

LED Status Indication:
Power & Input signal locking
Dimension: 97 x65 x29mm
Power: 12VDC 1.0A
Working Temp.: 5 °C - 25 °C
