Product Description

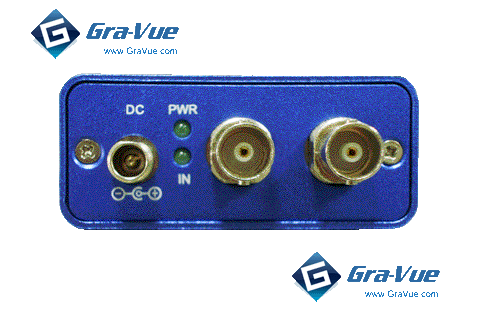

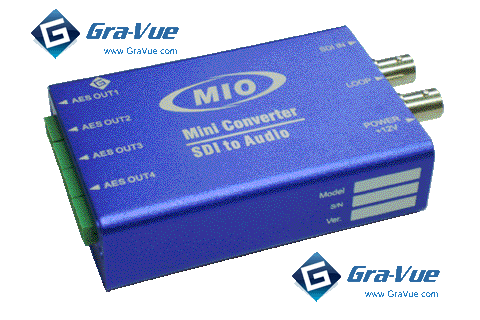

The MMIO DEMUX-HDSDI-AES is a miniature, compact de-embedder which extracts or de-embeds 4 channels of AES audio from a 3G/HD/SD-SDI signal. This compact box requires a 12V DC power from an optional AC to DC power supply or 12 V external source, such as a camera or battery. For user confidence and convenience there are two LEDs that indicate the status of source signal and power.

Key Features

  • Automatic input format detection
  • Supports 525i, 625i, 720p, 1080i and 1080p
  • SDI loop through
  • Extracts 4 AES audio
  • LED signal presence indication
Download Specification

Other products

MVS Series
VIO Series
MIO Series
MRS Series
MIO Series
Buy it online
　

Specification

Video Input Connector: 1xBNC 75Ω, SDI
Video Format SD: 576i50, 480i59.94
HD: 525i, 625i,720p, 1080i 50/59.94/60, 1080p23.98/50/59.94/60

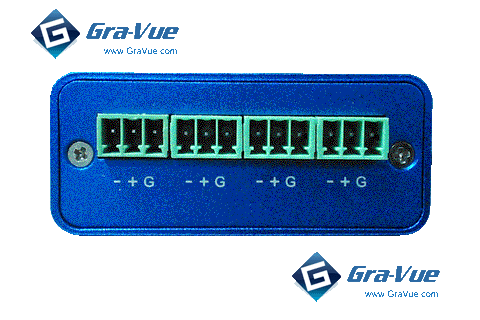

Audio Output 4 x 3pin phoenix, 600Ω,  (balanced)
Video Output 1xBNC 75Ω, SDI,  Loop-through.
LED Power
Input signal locking
Physical Dimension 97x65x29mm
Power +12VDC, 1.0 A
Work Temperature 5-25 °C
Storage Temperature 0-40 °C
