Product Description

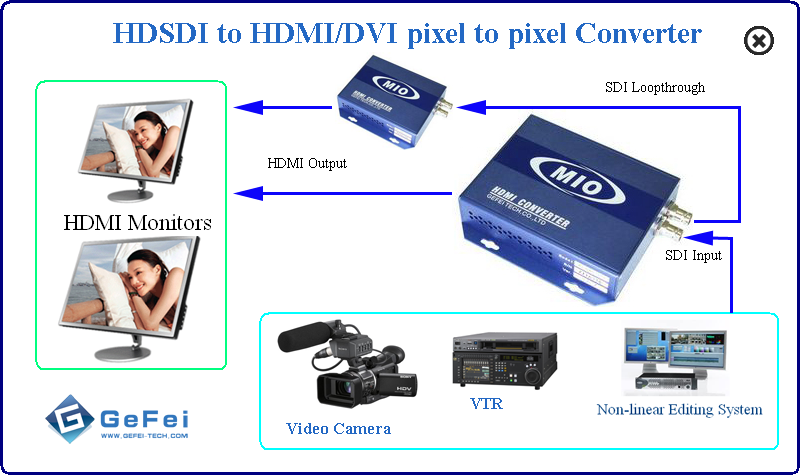

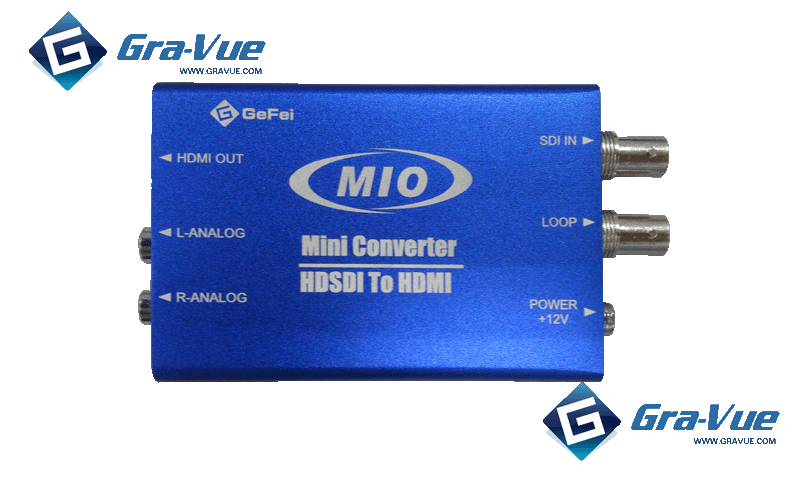

The MMIO-HDSDI-HDMI is a miniature high quality HDSDI to HDMI pixel to pixel video converter. The MMIO HDSDI-HDMI converts 3G/HD/SD-SDI, dual or single link HD/SD-SDI to the HDMI or DVI signal. Audio G1 CH1 and CH2 from digital input source are embedded into HDMI output signal, and also de-embedded to analog stereo audio outputs via two RCA connector.
The LED lights on the Mini box indicate the status of inputIt is widely used for the LCD or the PDP display. It supports an HD-SDI with embedded audio and the max resolution is up to 1080p. A MMIO-HDSDI-HDMI is a cost-effective device for high definition broadcasting video/audio monitoring or display systems.

Key Features

  • Automatic input format detection
  • Supports 525i, 625i, 720p, 1080i and 1080p
  • 2 channels embedded audio processing
  • HDMI V1.3 compatible
Download Specification

Other products

MVS Series
VIO Series
MIO Series
MRS Series
MIO Series
Buy it online
　

Specification

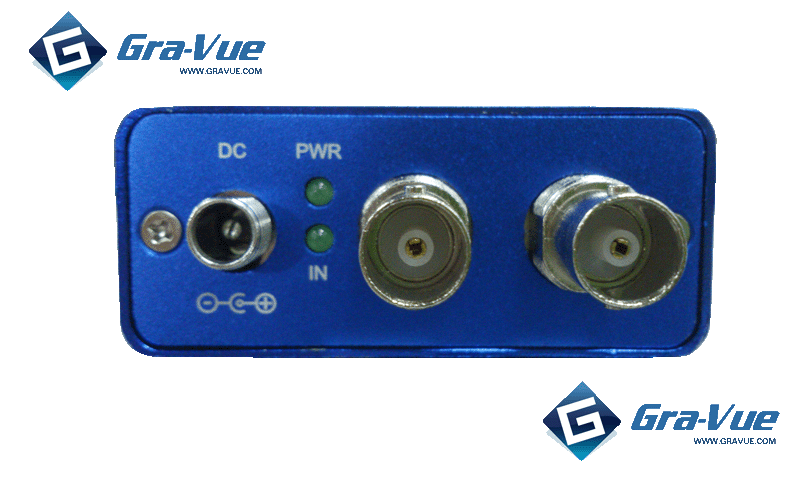

Input Connector: 1xBNC 75Ω, SDI
Video Format SD: 576i50, 480i59.94
HD: 525i, 625i,720p, 1080i 50/59.94/60, 1080p23.98/50/59.94/60

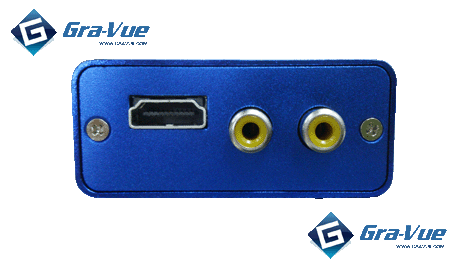

Video Output 1xHDMI Type A，Suports HDMI V1.3
1xBNC 75Ω，SDI Loopthrough
Output Video Resolution 1024x768, 1280x720, 1920x1080

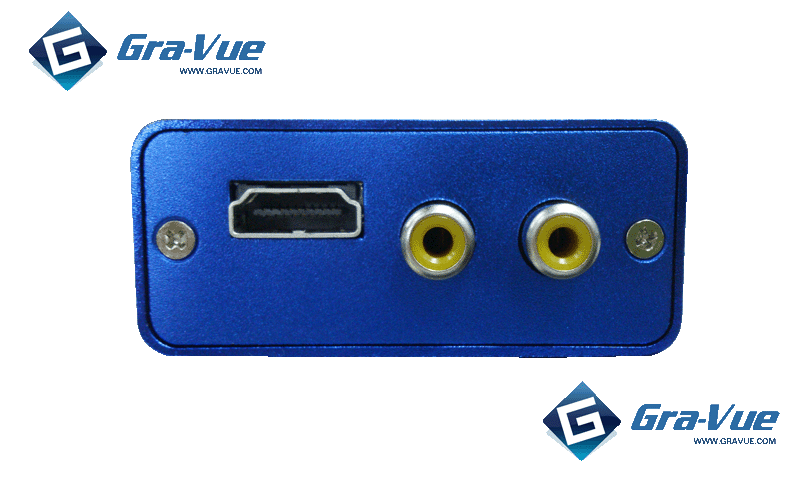

Analog Audio Output 2x RCA Jack
Output Video Resolution 1024x768, 1280x720, 1920x1080
LED Power
Input signal locking
Physical Dimension 97x65x29mm
Power +12VDC, 1.0 A
Work Temperature 5-25 °C
Storage Temperature 0-40 °C
