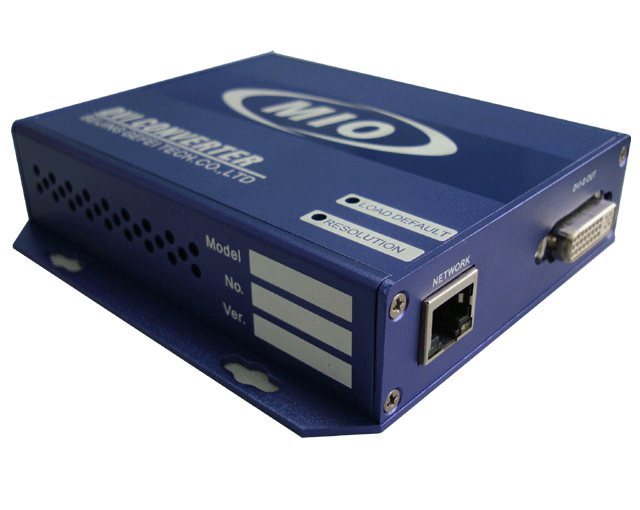

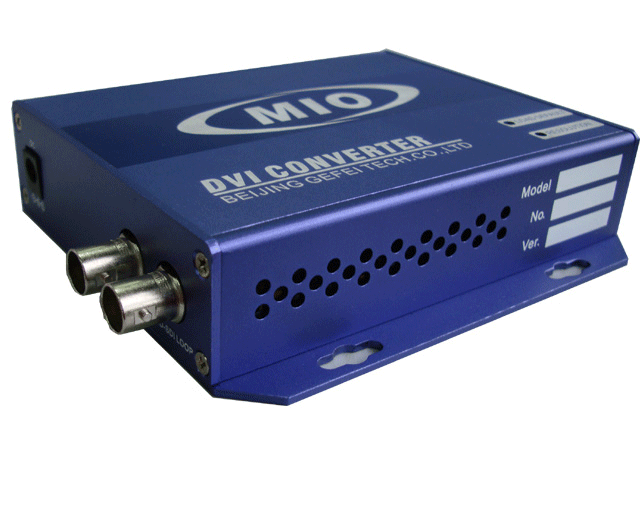

The MIO-HDMI/DVI-SDI is a miniature high quality video converter which converts the HDMI/DVI-D signal into the SD-SDI signal. It is very useful in studios and TV stations where you usually need to use signals from the PC display adapter for broadcasting or editing on non-linear workstations. Not only is it a signal converter, but it is also a video and audio quality survey and alarm indicator. It supports 4:3, 16:9 and full screen output mode. The signal’s UMD、Tally and VU indicator position can be set freely. It fully supports the WEBSERVER and the SNMP protocols, so configurations and operations can be done conveniently.

Application



Specification

Video Input: Video Output:
Connector: 1xHDMI Connector: 1xBNC 75Ω　
Video Resolution:
   800x600x75p      1024x768x60p
   1280x772x60p     1280x768x50p
   1366x768x60p     1920x1080p50
   1920x1080p60 		 Video Format:
   SD: 576i50, 480i59.94
   HD: 525i, 625i,720p
         1080i 50/59.94/60
        1080p23.98/25/29.97/30
External Control: Size:
1 x RJ45, 10M/100M Adaptive 4.8" x 3.9" x 1.1"    (120x98x27mm)
Power:  +12V    1.8 A　

Key Features

  • Advanced video de-interlacing processing
  • Video and audio signal auto survey by programmable threshold
  • Flexible alarm indicators, such as video/audio lost, frozen, black video, EDH error, mute
  • Programmable UMD characters
  • Four channel VU meters indication
  • Flexible alarm indicators, such as video/audio lost, frozen, black video, EDH error, mute
  • Programmable UMD characters
  • Four channel VU meters indication
  • Tally signal support
  • Built-in Web server and SNMP protocol
  • 4:3,16:9 and full screen display modes support
  • HDMI V1.3 compatible
  • Dolby 5.1 compatible
  • CEA timing standards compliant
Download Specification
Control Menu
MIO-HDSDI-HDMI/DVI-menu　
Flexible Display Selection
MIO-HDSDI-HDMI/DVI display Mode
