HDMI cable extender

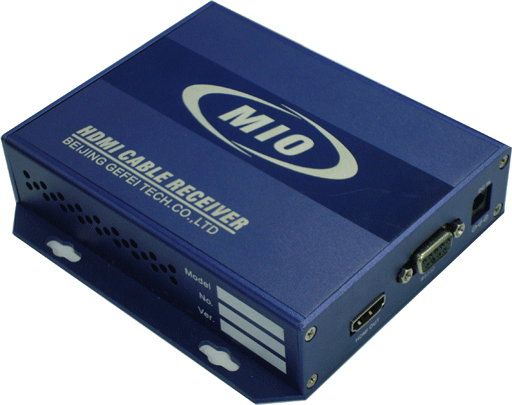

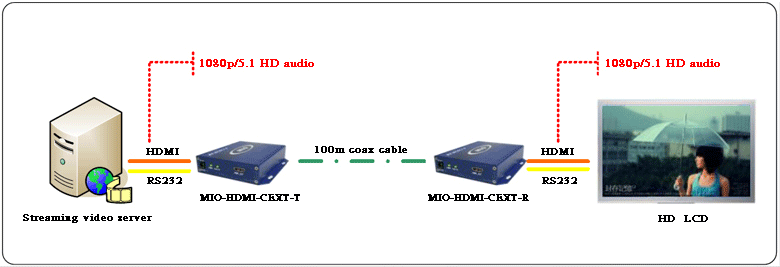

The MIO-HDMI-CEXT is a high quality miniature HDMI cable extender. The MIO-HDMI-CEXT transfers HDMI Video & Audio signals over a coaxial cable up to 100m. It's made up of a MIO-HDMI-CEXT-T transmitter and a MIO-HDMI-CEXT-R receiver. The MIO-HDMI-CEXT coax cable extender provides automatic input scan rate detection and supports a wide variety of input formats (576i, 625i, 720p, 1080i, and 1080p). The MIO HDMI-T is fully compatible with the latest HDMI v1.3 standards.

Specifications

Video Resolution:
800x600x75p     1280x768x60p      1366x768x60p      1920x1080x60p
1024x768x60p   1280x720x60p      1920x1080x50p
Interface:
MIO HDMI-CEXT-T: IN: 1xDVI-I, OUT: 1xBNC
MIO HDMI-CEXT-R: IN: 1xBNC,  Loop out: 1xBNC, OUT: 1xDVI-I
Size:
4.8" x 3.9" x 1.1" (120x98x27mm)
Power
+12V    1.8 A

Key Features

  • Standard HD/SD-SDI resolution support
  • Automatic input rate detection
  • Extend HDMI to 100m without distortion
  • Real-time uncompressed video/audio transmitted
  • HDMI 1.3 Support
Download Specification

NOTE: RS-232 port was reserved for future application
