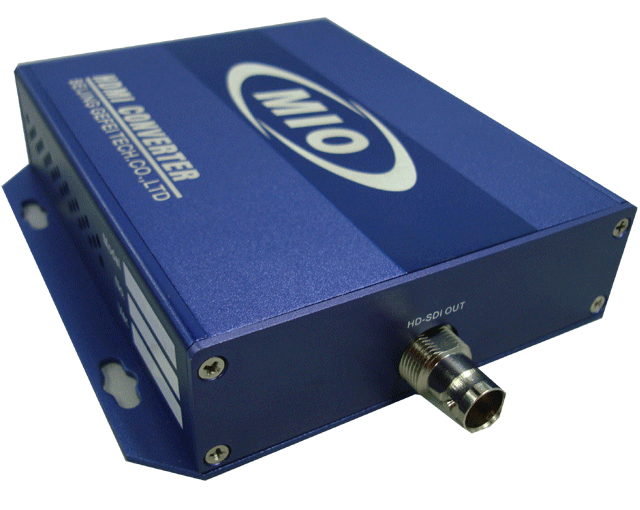

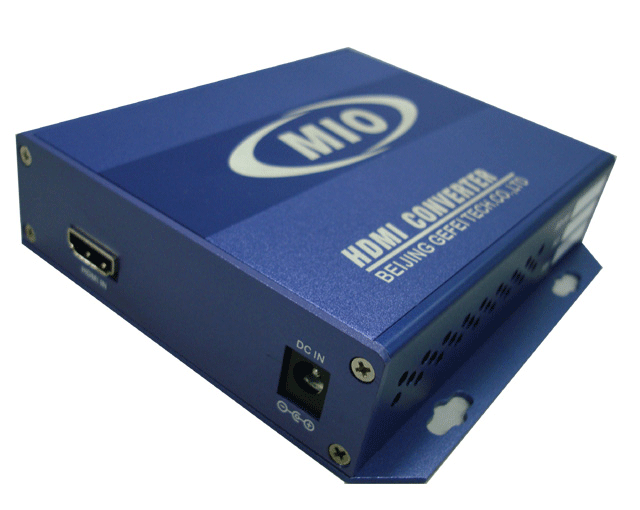

The MIO HDMI-HDSDI is a miniature high quality HDMI to HDSDI video converter. The MIO HDMI-HDSDI converts transport format signals of HDMI into HD/SD-SDI signals with embedded audio. It is fully compatible with HDMI V1.3 and auto detects input video/graphic format. The max 1920x1080x60p resolution is up to 1080p. The MIO-HDMI-HDSDI is a cost -effective device used in both professional and non-professional fields.

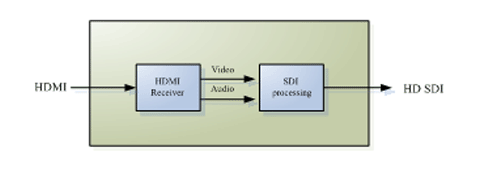

Block Diagram

HDMI to HD SDI video converter blk-diagram

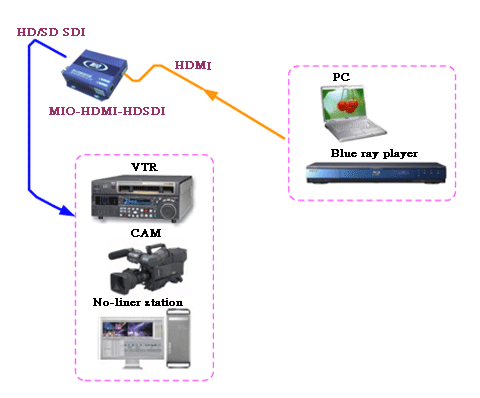

Application

HDMI to HDSDI video converter Back



Key Features

  • Pixel to pixel convert to keep original image quality
  • 16 channels embedded audio processing
  • HDMI V1.3 compatible
Download Specification

Specification

Video Input:
Connector: 1xHDMI，1xRs232　
Video Resolution:　
   800x600x75p     1024x768x60p 　
   1280x772x60p     1280x768x50p　
   1366x768x60p     1920x1080p50　
   1920x1080p60　

Video Output:
Connector: 1xBNC 75Ω 　
 Video Format:
   SD: 576i50, 480i59.94
   HD: 525i, 625i,720p　
       1080i 50/59.94/60
       1080p23.98/50/59.94/60

Size:
4.8" x 3.9" x 1.1" (120x98x27mm) 　

Power:
+12V    1.0 A　
