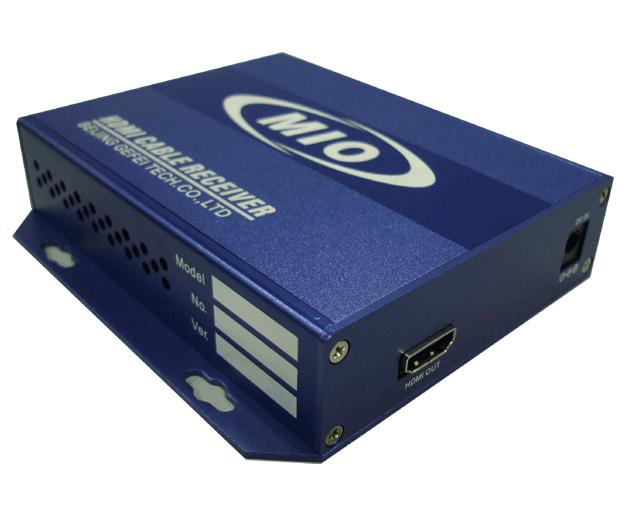

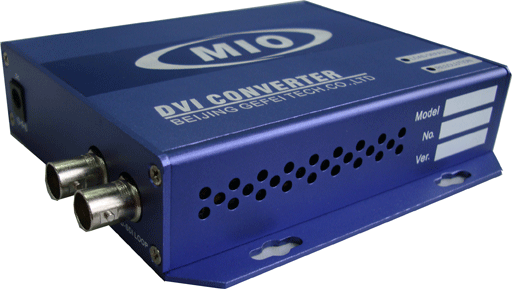

The MIO-HDSDI-HDMI is a miniature high quality video converter, which converts 3G-SDI, dual or single link HD-SDI, or SD-SDI to the HDMI signal. It is widely used for the LCD or the PDP display. It supports an HD-SDI with embedded audio and the max resolution is up to 1080p. A MIO-HDSDI-HDMI is a cost-effective device for high definition broadcasting video/audio monitoring or display systems.

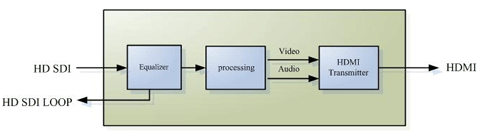

Block Diagram

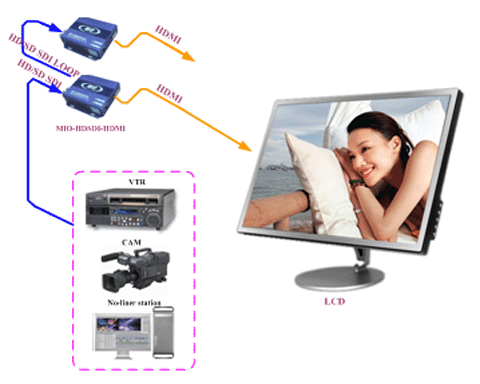

Application



Key Features

  • Pixel to pixel convert to keep original image quality
  • 16 channels embedded audio processing
  • HDMI V1.3 compatible
  • Dolby 5.1 compatible
Download Specification

Specification

Video Input:
Connector: 1*BNC 75Ω
 Video Format:
   SD: 576i50, 480i59.94
   HD: 525i, 625i,720p　
       1080i 50/59.94/60
       1080p23.98/50/59.94/60

Video Output:
Connector: 1xHDMI，1xRS-232
Loopthrough: 1xBNC 75ohm
Video Resolution:　
   800x600x75p     1024x768x60p 　
   1280x772x60p     1280x768x50p　
   1366x768x60p     1920x1080p50　
   1920x1080p60　

Size:
4.8" x 3.9" x 1.1" (120x98x27mm) 　

Power:
+12V    1.8 A　
