MIO-HDSDI-HDMI/DVI is a miniature high quality HD/SD-SDI to HDMI or DVI video scaling converter. The MIO-HDSDI-HDMI/DVI converts an HD/SD video signal to a digital RGB (HDMI/DVI-D) video and supports 4:3, 16:9 and full screen display ratio. The MIO-HDSDI-HDMI/DVI is also a video and audio quality survey and alarm indicator.The signal's UMD, Tally and VU indicator positions can be set freely. It fully supports the WEBSERVER and SNMP protocols. The MIO-HDSDI-HDMI/DVI is a cost-effective device for constructing video/audio monitoring or display systems.

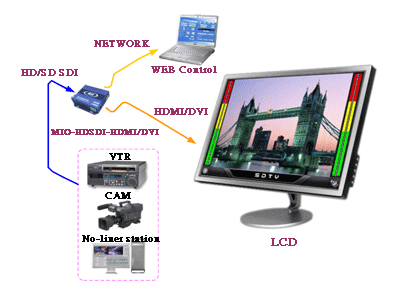

Application

HDSDI to HDMI converter with scaler application

Specification

Video Input: Video Output:
Connector: 1xBNC 75Ω　 Connector: 1xDVI, female　
 Video Format:
   SD: 576i50, 480i59.94
   HD: 525i, 625i,720p
         1080i 50/59.94/60
        1080p23.98/25/29.97/30 		Video Resolution:
   800x600x75p      1024x768x60p
   1280x772x60p     1280x768x50p
   1366x768x60p     1920x1080p50
   1920x1080p60
External Control: Size:
1 x RJ45, 10M/100M Adaptive 4.8" x 3.9" x 1.1"    (120x98x27mm)
Power:  +12V    1.8 A　

Key Features

  • Fully support 1080P
  • SD-SDI and HD-SDI auto sensing
  • Embedded audio support
  • Advanced video de-interlacing processing
  • Video and audio signal auto survey by programmable threshold
  • Flexible alarm indicators, such as video/audio lost, frozen, black video, EDH error, mute
  • Programmable UMD characters
  • Four channel VU meters indication
  • Tally signal support
  • Built-in Web server and SNMP protocol
  • 4:3,16:9 and full screen display modes support
  • Apple HD Cinema Display compatible
  • HDMI V1.3 compatible
  • CEA timing standards compliant
Download Specification

MIO-HDSDI-HDMI_DVI

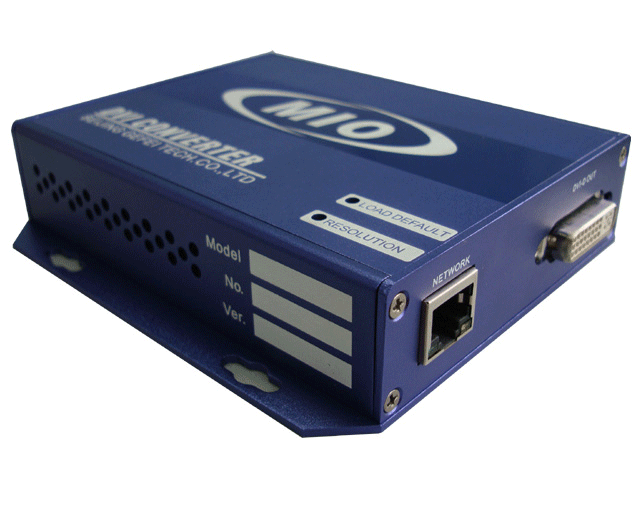

Click to view larger image
HDSDI to HDMI converter with scaler panel
Buy it online

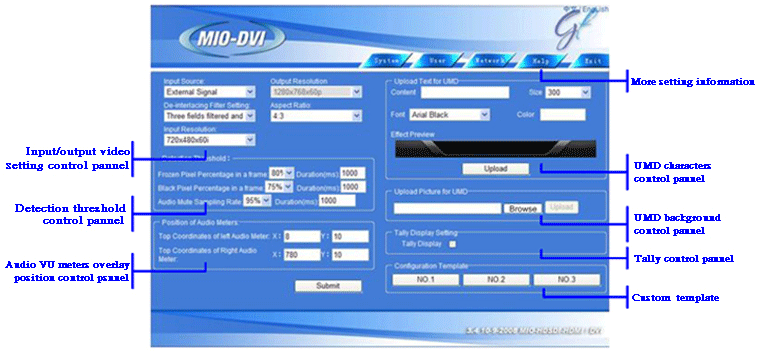

Control Menu
HDSDI to HDMI converter with scaler manu　

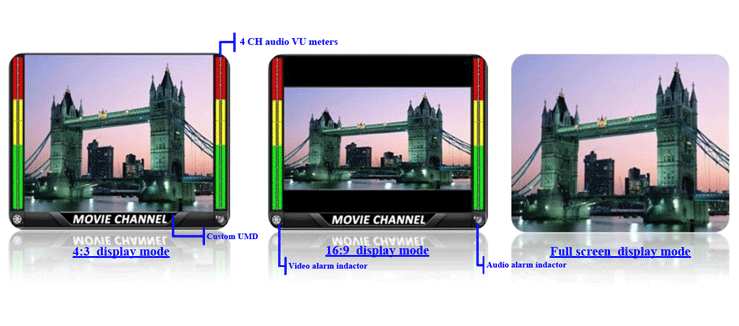

Flexible Display Selection
HDSDI to HDMI converter with scaler display
