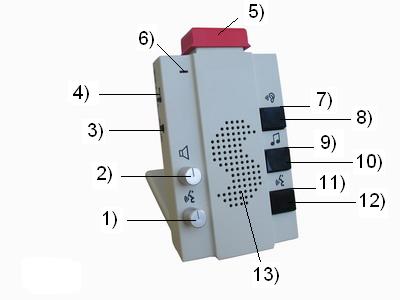

Operating components of intercom system:
1)
Volume in RF cabin (speech)
2)
Volume console (listening)
3)
CV/CBT switch
4)
Physio beeper volume trigger
5)
Emergency table stop
6) Microphone
7) LED listening in on
8)
Button listening on/off
9) LED music on
10) Button play music in cabin on/off
11) LED squeeze bulb active
12) Speak button and squeeze bulb reset button
13) Speaker
|
